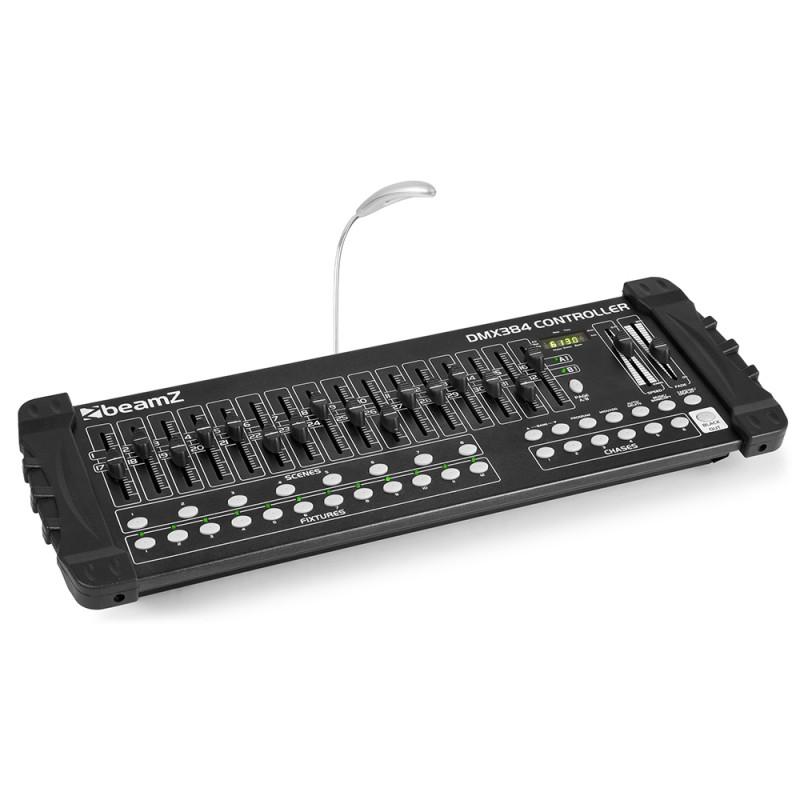

The DMX 384 controller is a DMX hardware controller for lighting effects that are compatible with DMX protocol. It will control up to 12 fixtures whit 32 DMX channels each (384 total channels). There are 30 banks with 240 total programmable scenes. The DMX 384 controller has 16 control faders with 2 page banks. With DMX 384 Controller, you can record up to 6 chases with separate fade times and step speeds.
Il controller DMX 384 è un controller DMX per effetti luce compatibili con il protocollo DMX. È in grado di controllare fino a 12 apparecchiature con 32 canali DMX ciascuna (384 canali totali). Dispone di 30 banchi con un 240 scene totali programmabili. Il controller DMX 384 dispone di 16 fader di controllo con 2 page bank. Con il controller DMX 384, è possibile registrare fino a 6 chase con tempi di fade e velocità di step separati.
El DMX 384 es un controlador DMX por hardware para efectos de luces compatibles con DMX. Puede controlar hasta 12 efectos con 32 canales DMX cada uno (384 canales en total). Hay 30 escenas programables con un total de 240. El DMX 384 incluye 16 fader de control con 2 bancos por canal. Con su DMX 384 Controladora, usted podra grabar hasta 6 chases con tiempos de fade separados y control de velocidad de pasos.
DMX channels | 384 |
DMX connection | 3-Pin XLR |
Power supply | 100-240Vac, 50/60Hz (incl. 12Vdc adaptor/1000mA) |
Dimensions | 190 x 522 x 770mm |
Weight | 2.6kg |
